Spatial view

The spatial view shows terrain data or flow model results for a specific reference wind and height above terrain. It is possible to zoom and pan the window, adjust the color range, copy graphics, and export the grid data in Surfer format. The maps can be used to identify areas of adverse flow conditions.

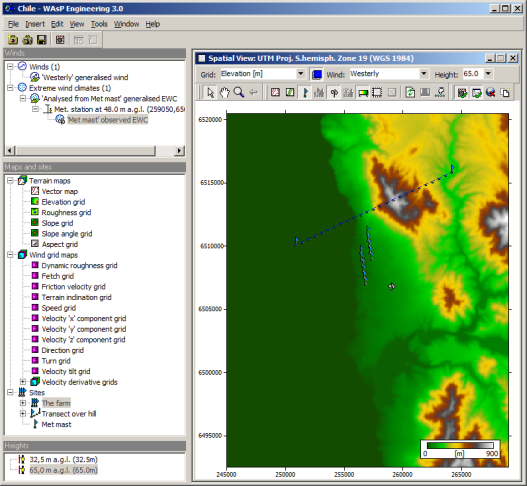

See site locations with various map of terrain of flow conditions.
See site locations with various map of terrain of flow conditions.

Adjust the color scale to detect exceedance of threshold values, e.g. the flow inclination angle.
Adjust the color scale to detect exceedance of threshold values, e.g. the flow inclination angle.
